Cementing Plugs:

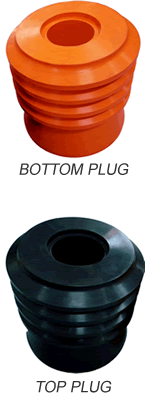

Revata Engineering manufactures Cementing Plugs from high-performance special elastomers and core materials. These Cementing Plugs are specially designed with a positive wiping action to ensure that the casing is clean.
Top Plugs:
The Bottom Cementing Plug is designed to exert continuous pressure on the casing wall. The core is made of special materials such as Plastic, Aluminium or Phenolic depending on the application and well conditions. The tapered base fits the cavity of the bottom plug initiating a positive seal. A solid rubber top plug is also available.
Bottom Plugs:
Like the Top Cementing Plug, the fins and tail section provide positive wiping action. Fins also serve as a seal while cementing. The core of the bottom plug also made of special materials such as Plastic, Aluminium or Phenolic depending on the application and well conditions. A rubber diaphragm at the top of the plug ruptures after the plug is seated allowing cement to flow through.
Our Cementing Plugs:
Are available in sizes from 2-3/8“ upto 16”.
Are available in Pressure Rating from 3,500 PSI upto 8,000 PSI.
Are manufactured for a standard Burst pressure of 300 PSI and can be adjusted to suit customer requirements.
Are made of special elastomer blend that has a good temperature resistance of upto 250°C (482 °F).
The Cementing Plugs are available in a wide variety of sizes to suit your requirements. Special sizes are available upon request.
We manufacture Cementing Plugs in various sizes as below. Special Sizes are also available upon request.
Revata Part Number For Cementing Plugs |
Casing Size (Inches |
Casing Weight (Pounds) |
Plug Length (Inches) |
Plug O.D. (Inches) |
Top Plug |
Bottom Plug |
T2380 |
B2380 |
2-3/8" * |
4.0/5.0 |
4-1/2" |
2-1/8" |
T2780 |
B2780 |
2-7/8" * |
5.9/6.5 |
5 |
2-1/2" |
T3120 |
B3120 |
3-1/2" * |
7.7/11.2 |
6 |
3-11/16" |
T4000 |
B4000 |
4" * |
9.0/11.0 |
6 |
3-11/16" |
T4120 |
B4120 |
4-1/2" |
9.5/13.5 |
7-1/2" |
4-3/16" |
T5000 |
B5000 |
5" |
11.5/21 |
8-1/2" |
4-13/16" |
T5120 |
B5120 |
5-1/2" |
13/23 |
8-5/8" |
5-5/16" |
T6580 |
B6580 |
6-5/8" |
17/32 |
9-1/4" |
6-1/8" |
T7000 |
B7000 |
7 |
17/38 |
9-1/2" |
6-5/8" |
T7580 |
B7580 |
7-5/8" |
20/39 |
10 |
7-3/16" |
T8580 |
B8580 |
8-5/8" |
24/49 |
10-12" |
8-1/8" |
T9580 |
B9580 |
9-5/8" |
29/54 |
11 |
9-1/16" |
T1034 |
B1034 |
10-3/4" |
32/56 |
12 |
10-7/32" |
T1134 |
B1134 |
11-3/4" |
38/61 |
12 |
11-3/16" |
T1234 |
B1234 |
12-3/4" |
53 |
13-1/4" |
12-1/4" |
T1336 |
B1336 |
13-3/6" |
48/84 |
15 |
13 |
T1600 |
B1600 |
16" |
55/84 |
19-1/2" |
16-1/6" |
|
|
|
|
|
|
* Denotes Tubing Size |
|
|
|
